Pipeline Rehabilitation Vehicle
Client Brief:
The client manufactures specialised vehicles fitted out with equipment for underground pipeline inspection and pipe re-lining.
The brief was to design and install a reliable power supply.
Challenges:
The inspection and re-lining equipment is highly specialised, robotic camera guided, requiring high quality and reliable 240v AC supply, in silence to allow communication between workers.
The energy supply system was required to provide enough power to complete the underground inspection tasks without the need for constant re-charging. It also needed to power the air-conditioning for the comfort of operators and maintaining the reliability of specialised electronic systems.

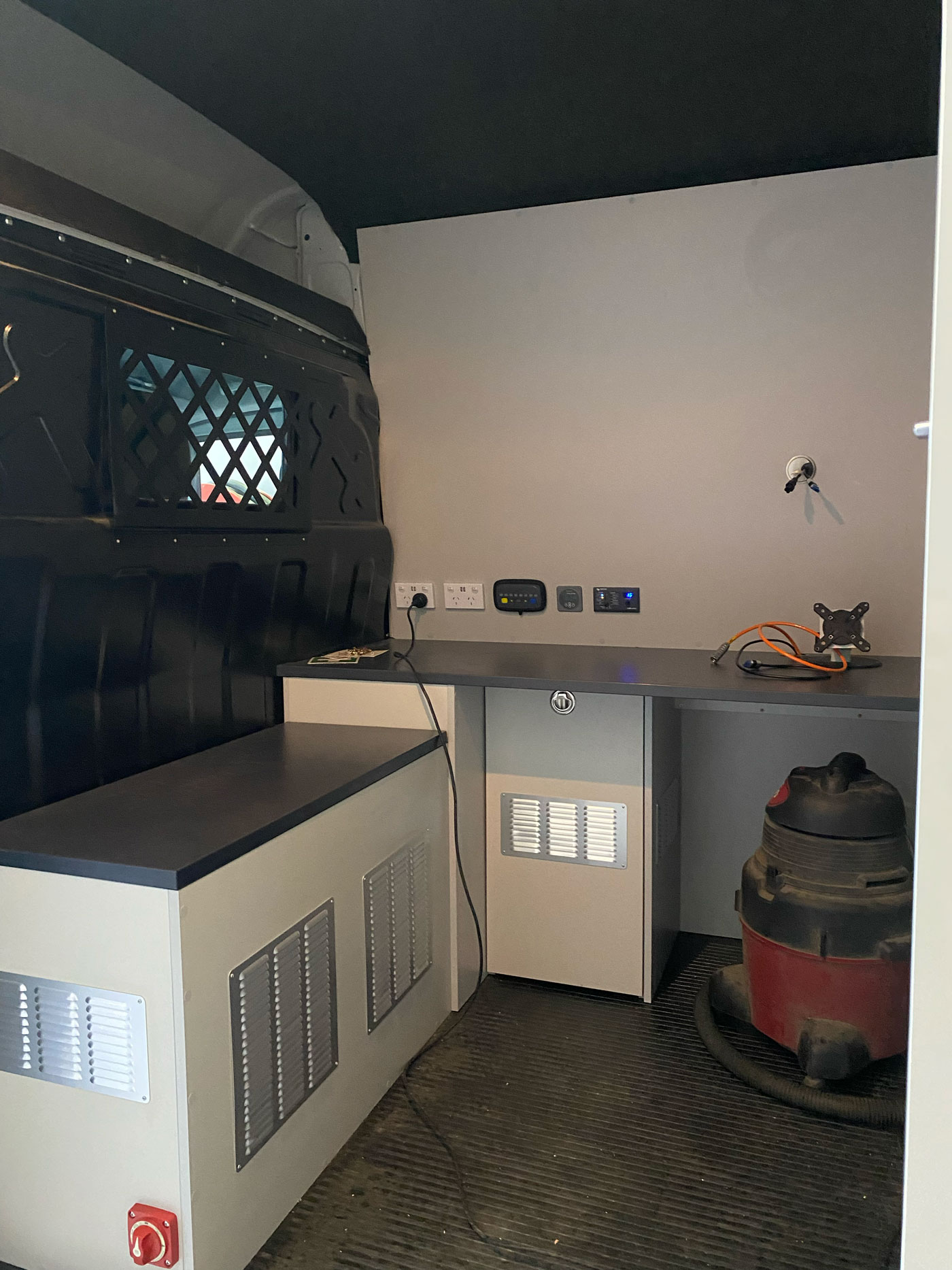

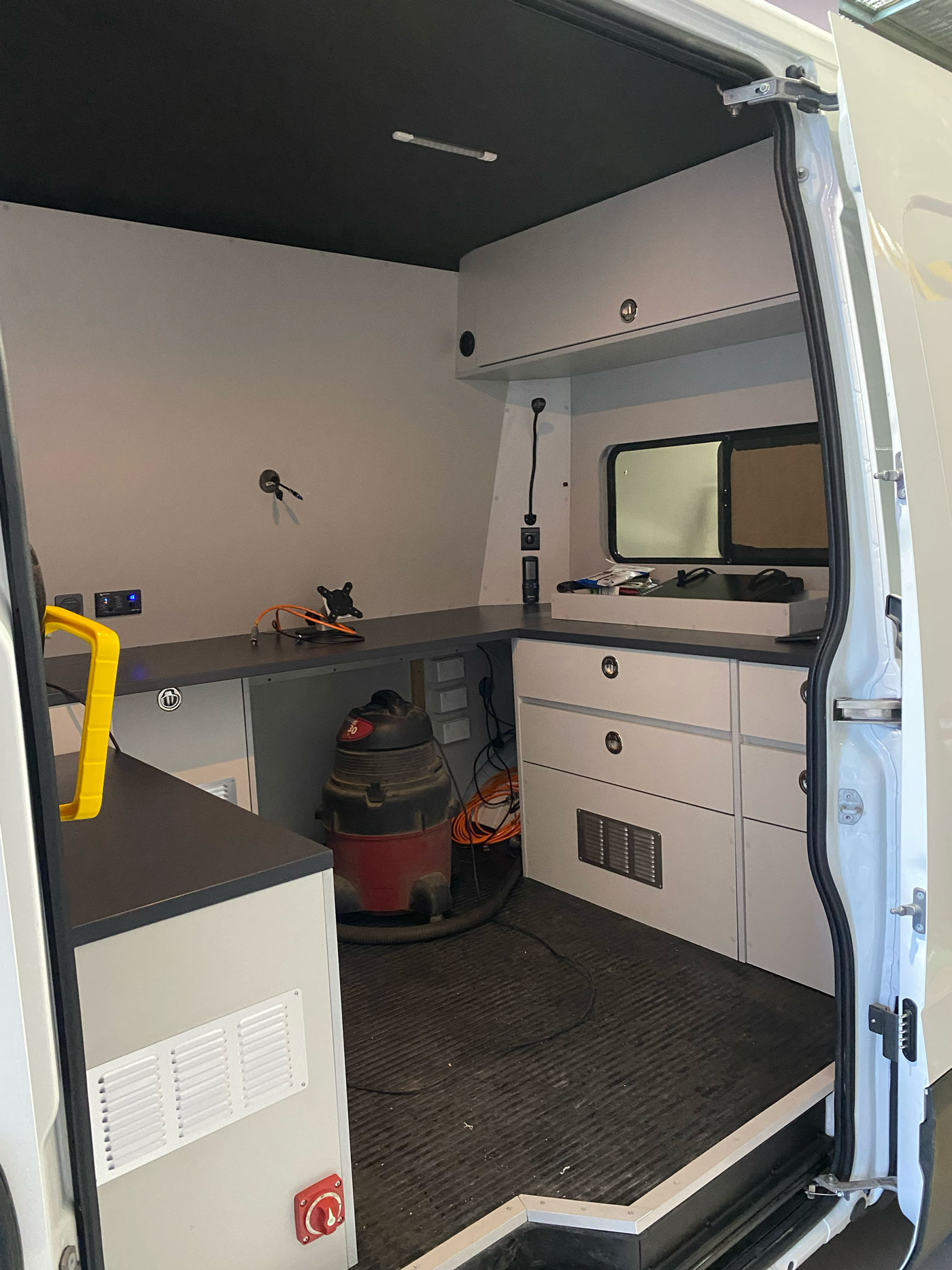

The area set aside for the energy system installation was small. Overkill’s early involvement in the design ensured all equipment could be accommodated and final vehicle GVM not exceeded.
Components of the Energy System:

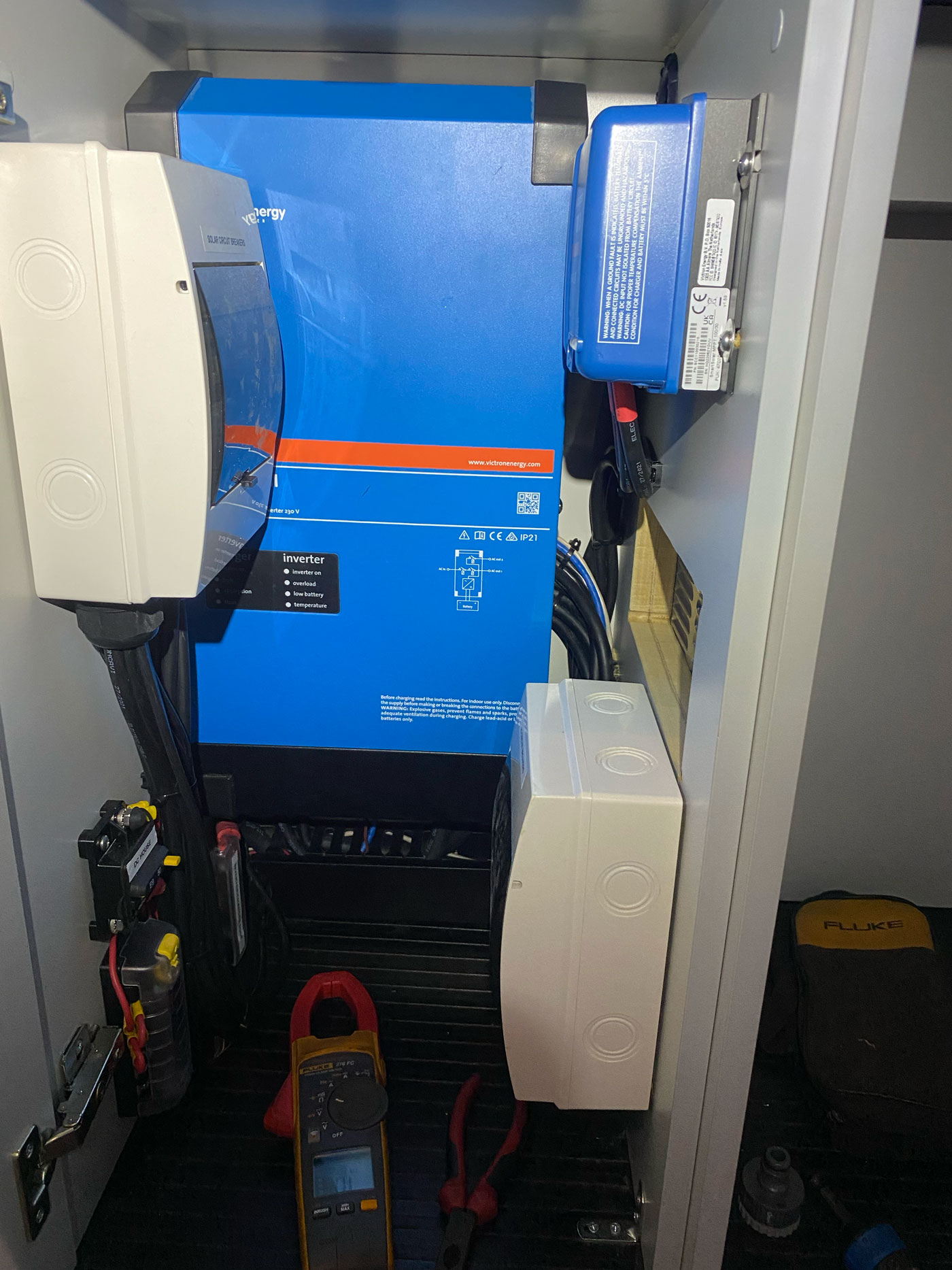

| Product | Model | Part | Link |
|---|---|---|
| Inverter Charger | Victron Multi-Plus II, 12/3000/120-32 | (PMP122305010) |

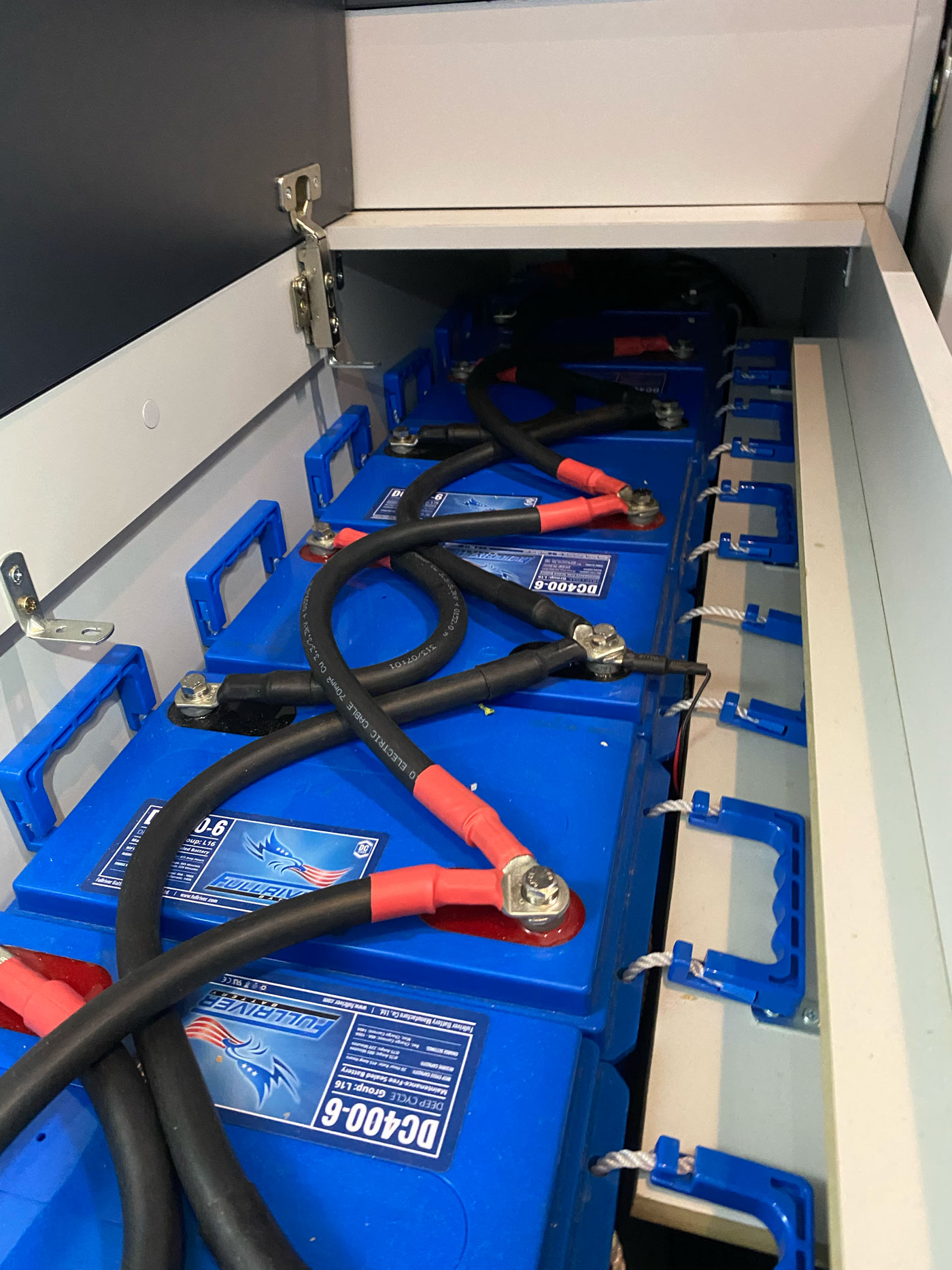

| Battery Bank | Full River AGM 1600 A/Hr 12v, comprised of X8 DC400-6 in series/parallel | |
| DC-DC Charger | Victron Orion-Tr Smart 12/12-30 Amp | (ORI121236140) |
| Solar Controller | Victron Smart Solar MPPT 75/15 | (SCC075015060R) |
| Solar Controller | Victron Smart solar MPPT 100/50 | (SCC11005210) |
| Solar Panel | Sunman eArc 175W Flexible Panel X1 | (SMF175M-4x09U) |
| Solar Panel | Sunman eArc 430W Flexible Panel X1 | (SMF430-12x12UW) |
| Battery Monitor | Victron BMV712 500A/50mV | (BAM030712000) |
| Monitoring Hub | Victron Cerbo GX | (BPP900450100) |
| Monitoring Touch Screen | Victron GX Touch 50 | (BPP900455050) |
Supporting heavy DC cabling and circuit protection appropriate to this installation was used throughout the system.
