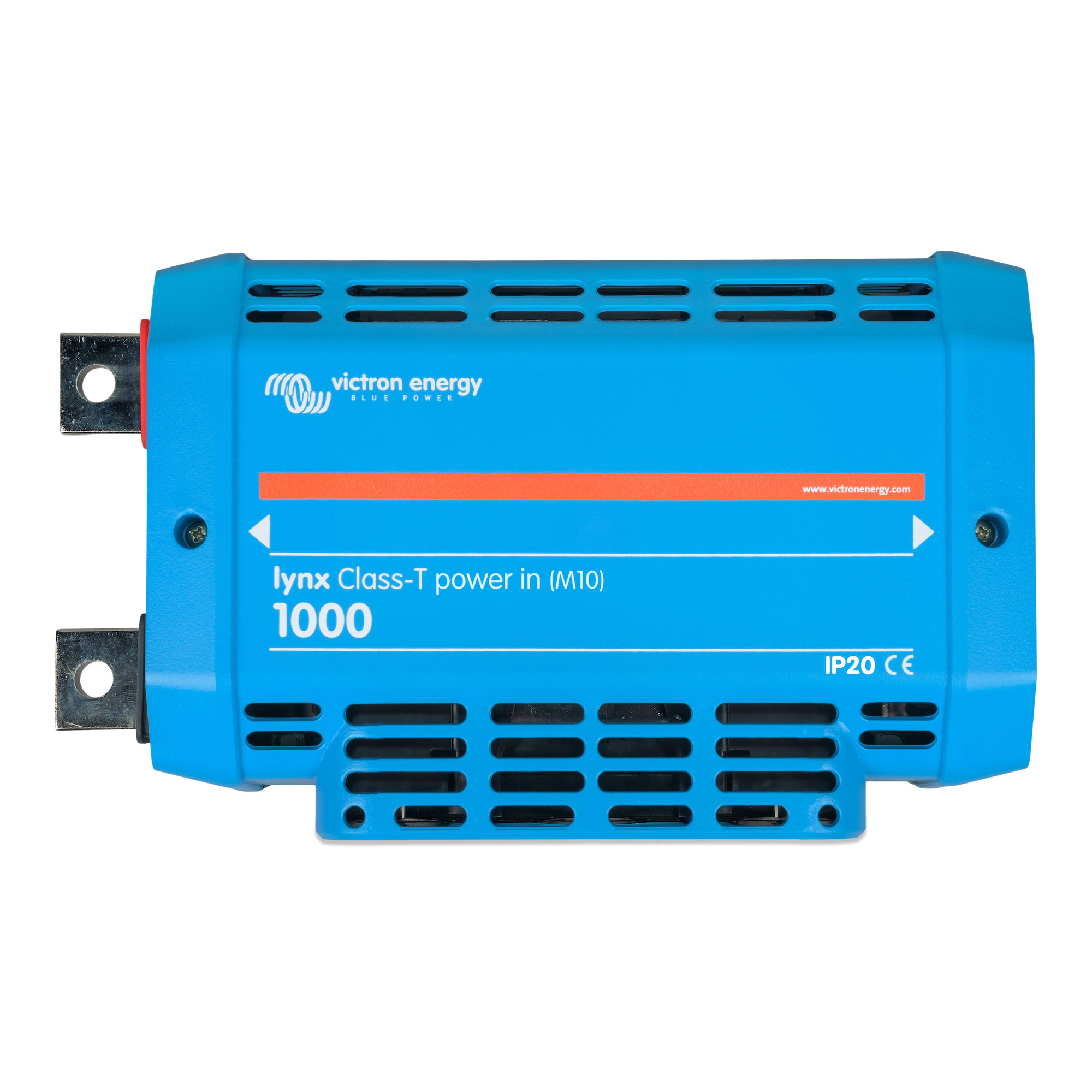

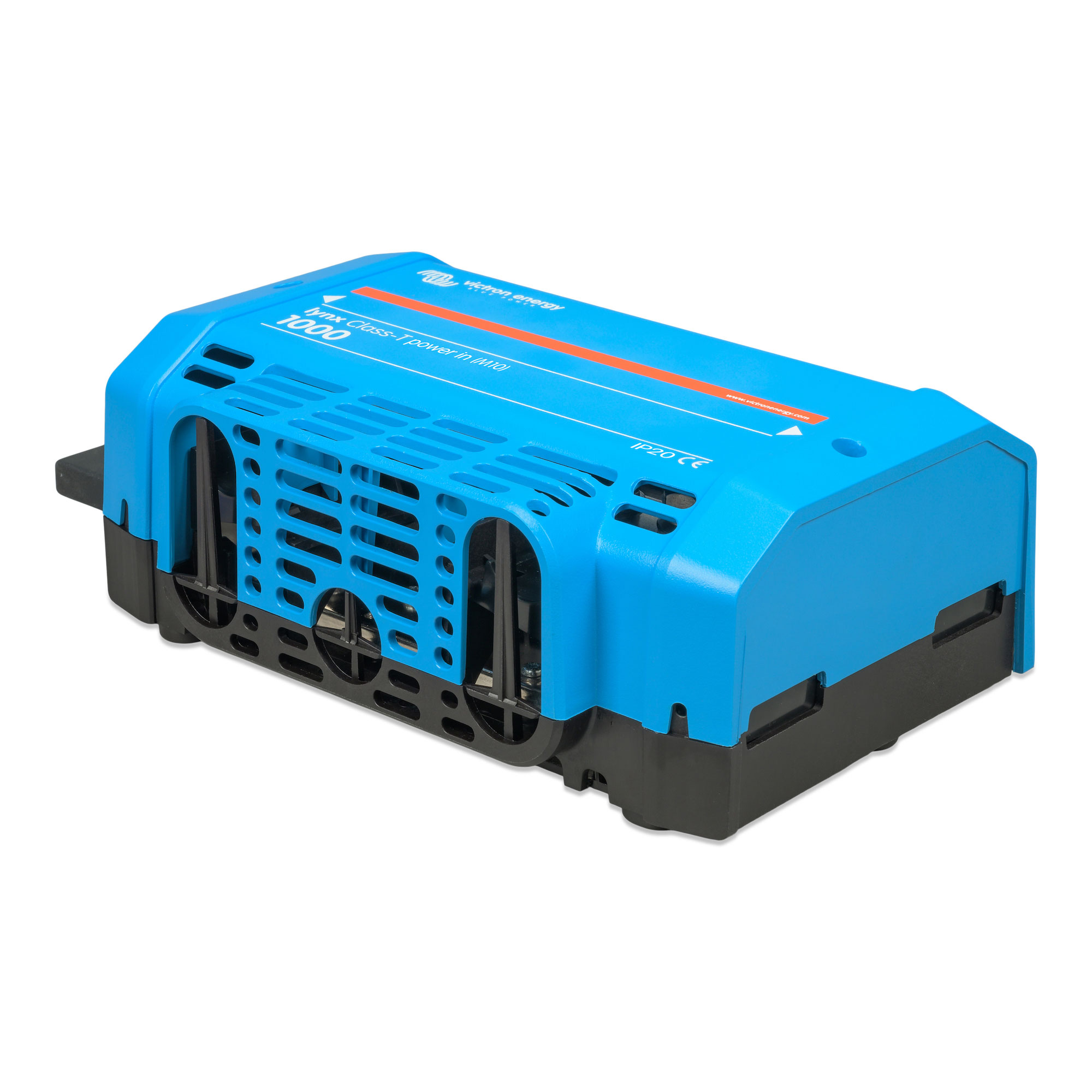

Lynx Class-T Power in (M10)

$291.00 Exc GST

A positive and negative busbar that accepts two Class-T fuses and has two battery or DC equipment connections, available with M10 busbar. The Lynx Class-T Power In connects and fuses up to two strings of Lithium batteries.

Lynx Class-T Power in (M10)
$291.00 Exc GST
Contact Us

"*" indicates required fields

Nature of Enquiry*
Drop files here or
Max. file size: 10 MB.
    This field is for validation purposes and should be left unchanged.

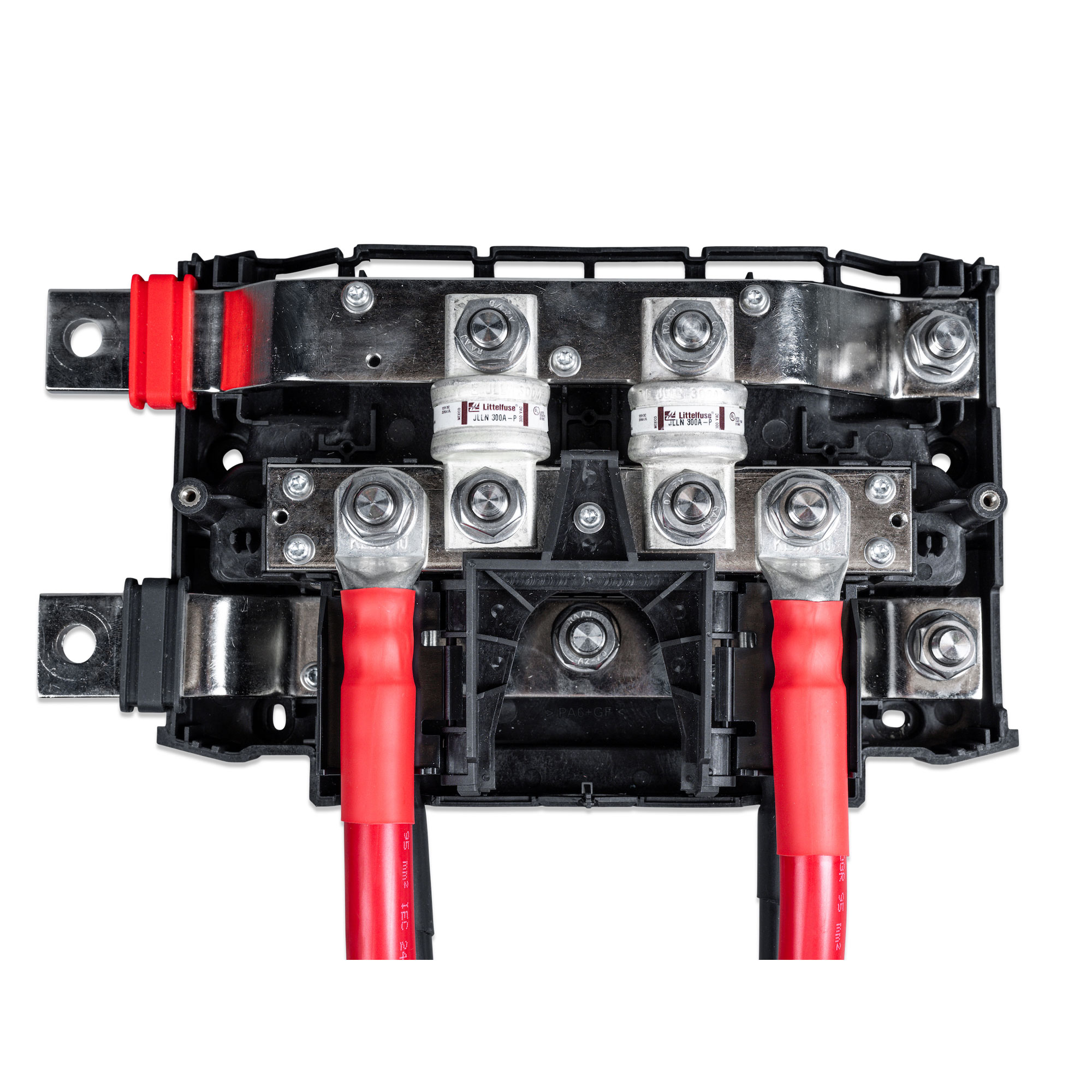

    It features a positive and negative busbar, and connections for two Class-T fuses as well as a connection to ground the DC system. The Class T-fuses, available in 225A, 250A, 350A and 400A, must be purchased separately.

    For installations using three or more strings of Lithium batteries, use multiple Lynx Class-T modules. As a core component of the Lynx Distribution system, the Lynx Class-T seamlessly integrates with all other M10 Lynx products.

    MPN: LYN060404010 SKU: V.LYN-CLASS-T-POW-IN-M10 Category: Brand:
