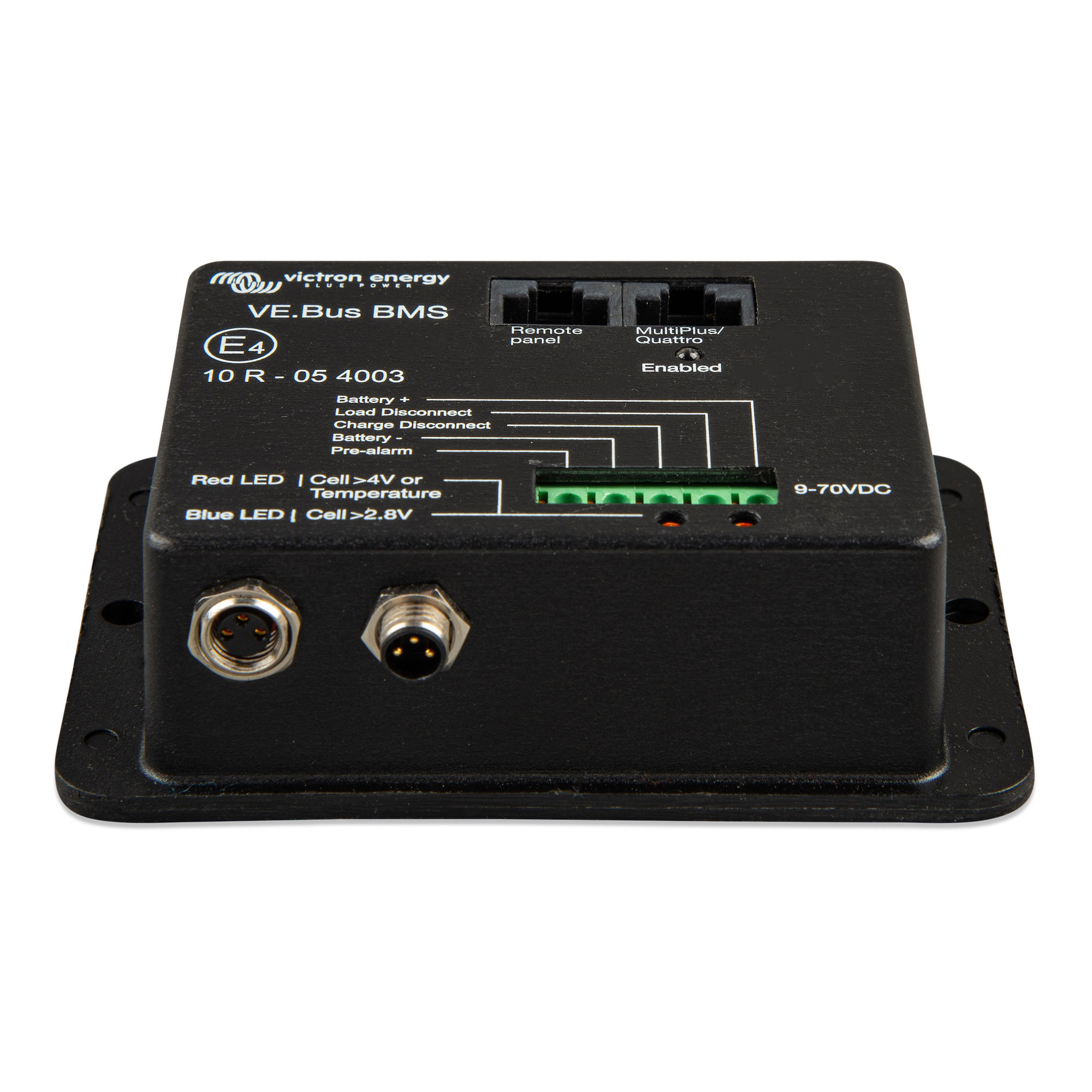

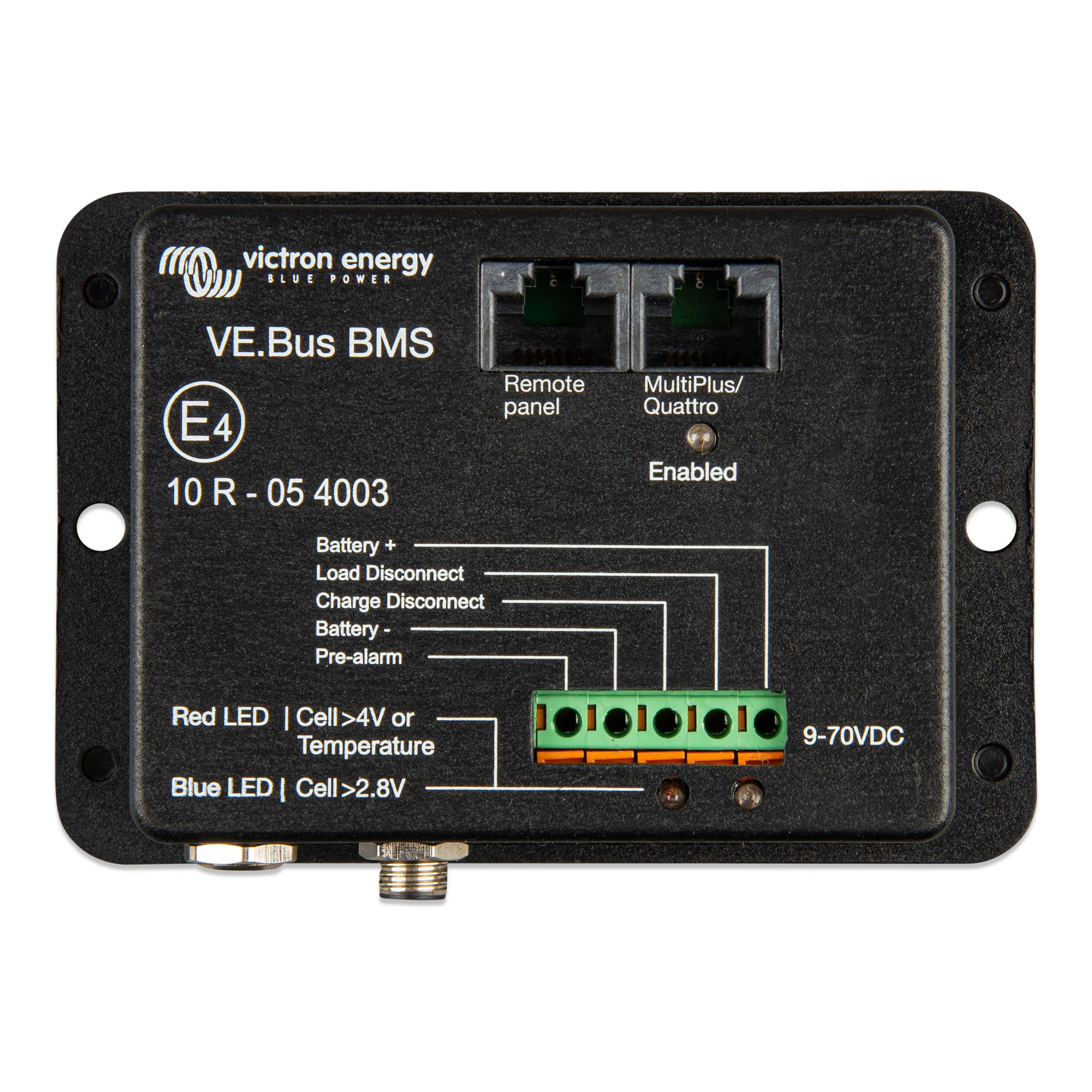

VE.Bus BMS
VE.Bus BMS - Image 2
VE.Bus BMS - Image 3

VE.Bus BMS

$201.00 Exc GST

A Battery Management System (BMS) is technology dedicated to the oversight of a battery pack, which is an assembly of battery cells, electrically organised in a row x column matrix configuration to enable delivery of targeted range of voltage and current for a duration of time against expected load scenarios.

The inclusion of a BMS is vital in lithium battery applications to ensure safety, efficiency, and longevity.

VE.Bus BMS
$201.00 Exc GST
Contact Us

"*" indicates required fields

Nature of Enquiry*
Drop files here or
Max. file size: 10 MB.
    This field is for validation purposes and should be left unchanged.

    The V.E. Bus BMS used in conjunction with a Victron lithium iron phosphate (LiFePO4 or LFP) battery will:
    * shut down or disconnect loads in case of imminent cell under voltage,
    * reduce charge current in case of imminent cell over voltage or over temperature (VE.Bus products only), and
    * shut down or disconnect battery chargers in case of imminent cell over voltage or over temperature.

    Protects 12V, 24V and 48V systems. The operating voltage range of the BMS: 9 to 70V DC.

    Communicates with all VE.Bus products, including MultiPlus, Quattro or Phoenix inverter with a standard RJ45 UTP cable.

    Additional information

    Weight 0.09 kg
    Dimensions 8 × 11 × 3 cm
    Download Product Datasheet
    MPN: BMS300200000 SKU: V-BMS-VEBUS Category: Brand:
