Smart Shunts

$122.00$387.00 Exc GST

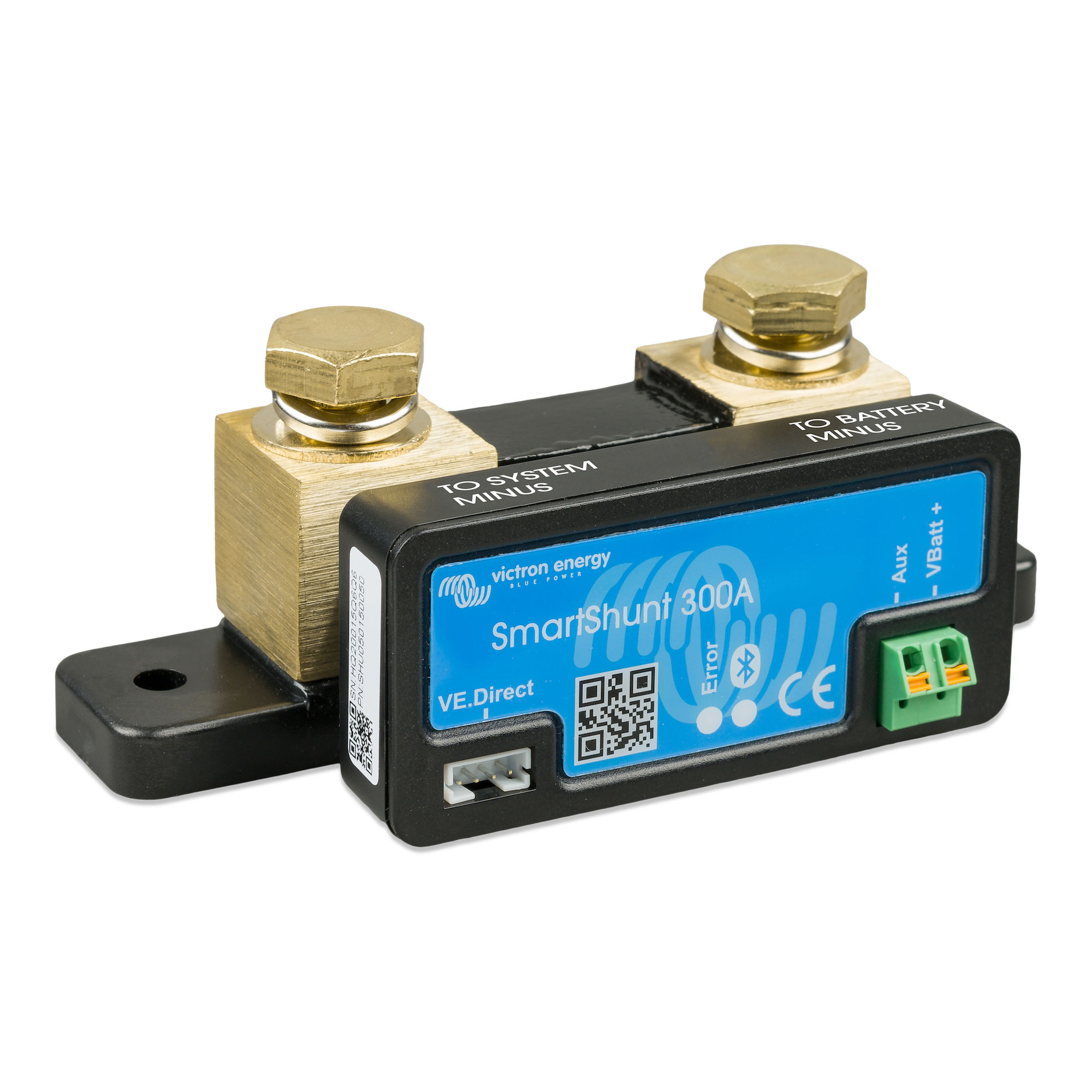

The SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display.

Smart Shunts
$122.00$387.00 Exc GST
Contact Us

"*" indicates required fields

Nature of Enquiry*
Drop files here or
Max. file size: 10 MB.
    This field is for validation purposes and should be left unchanged.

    The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.

    Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.

    The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.
    The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.

    Models:

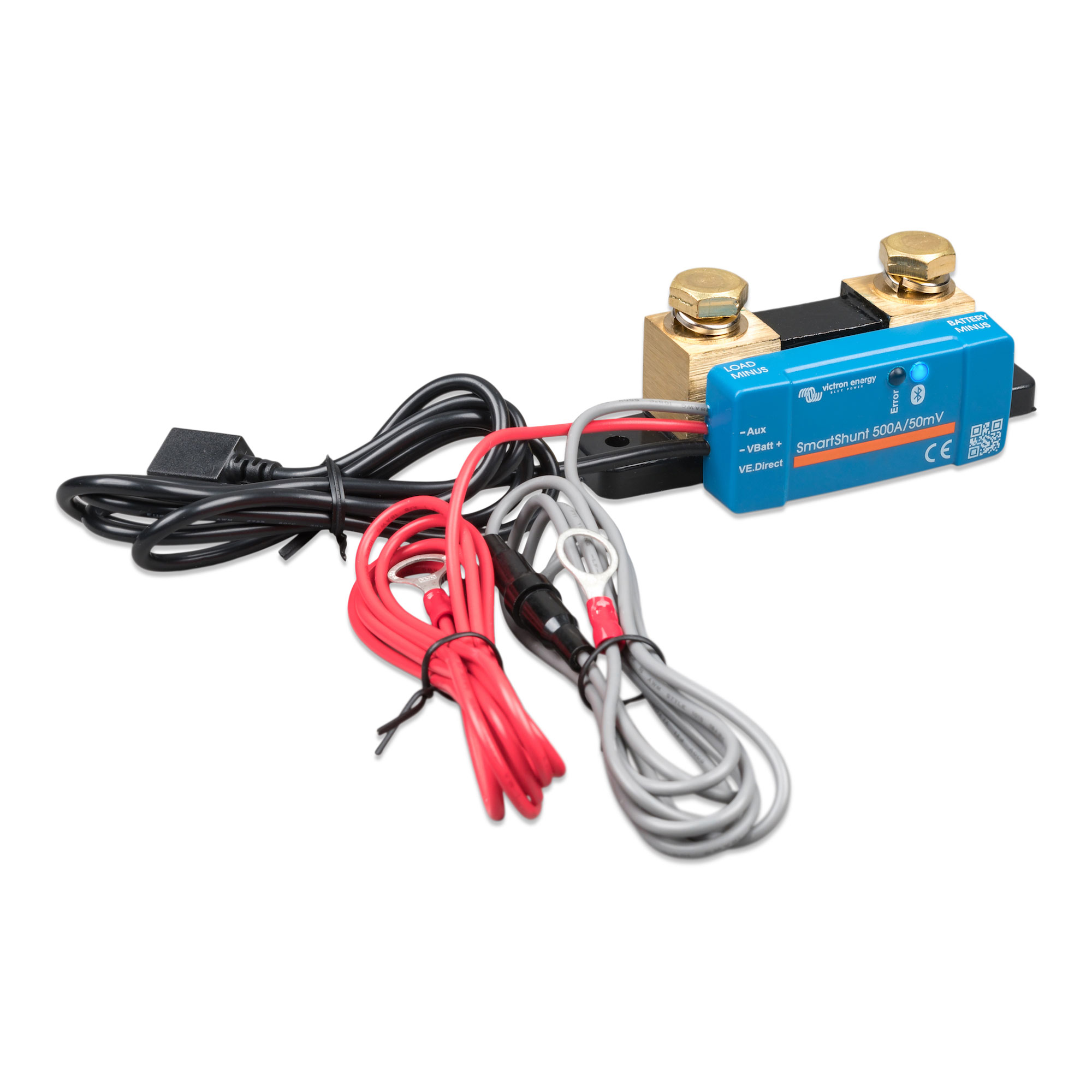

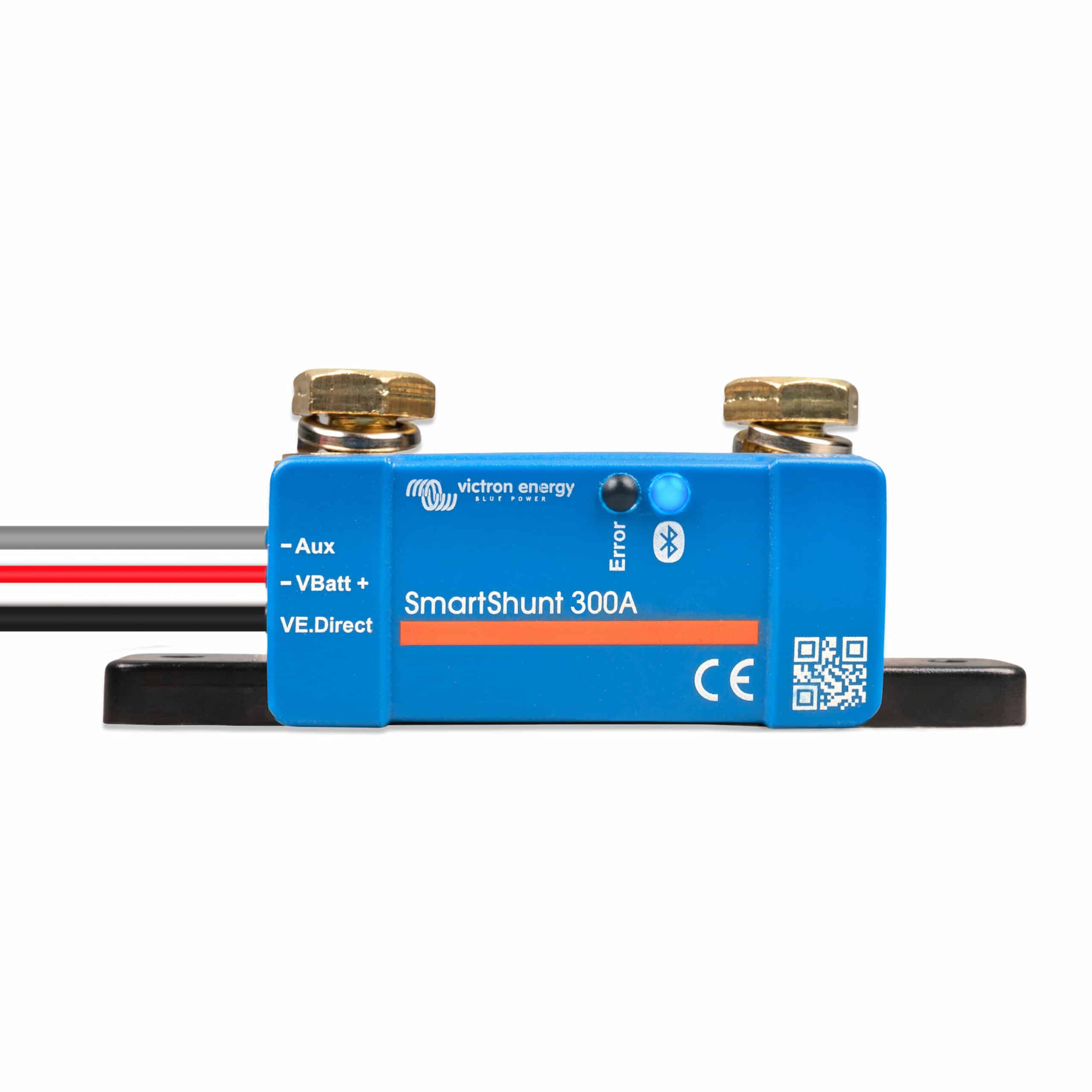

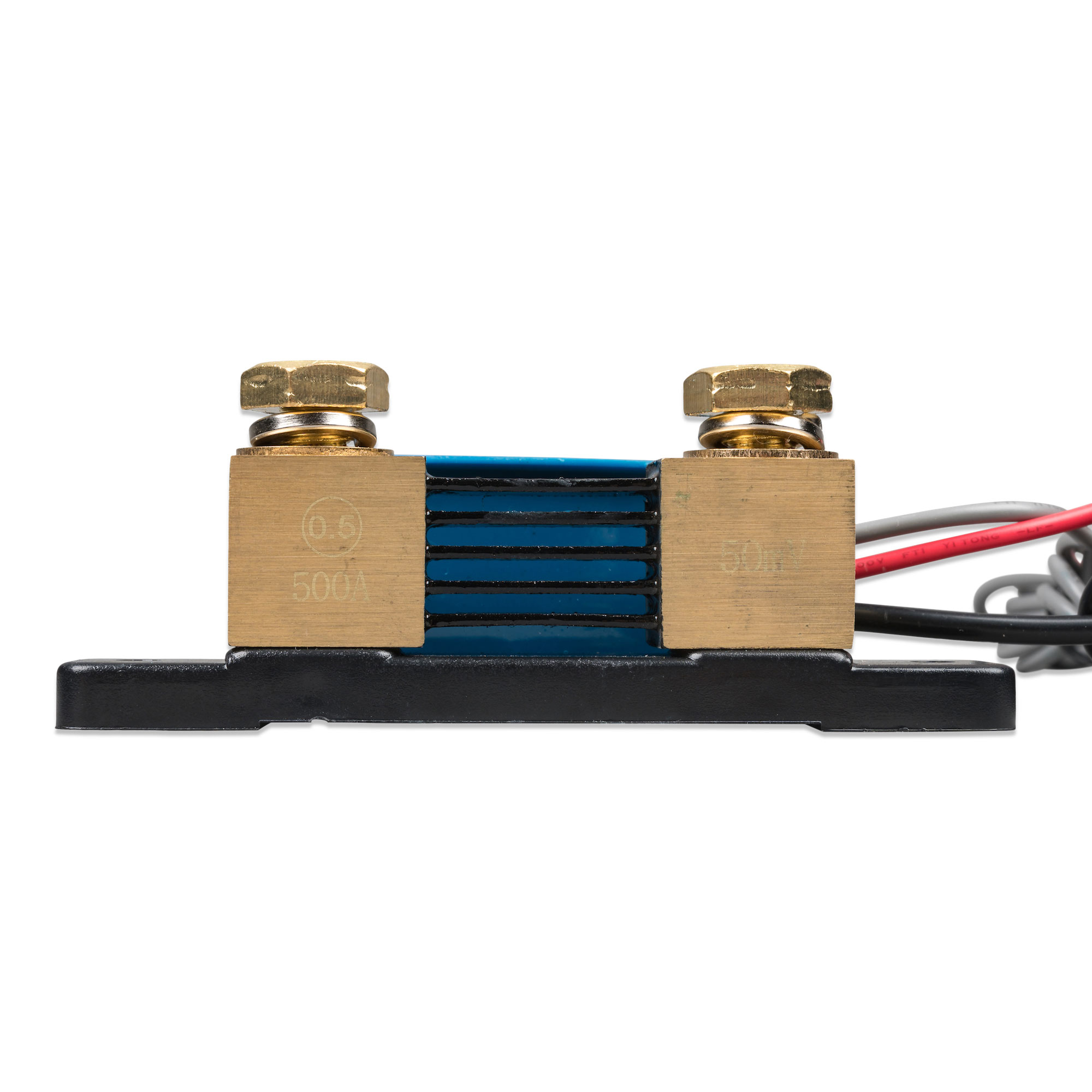

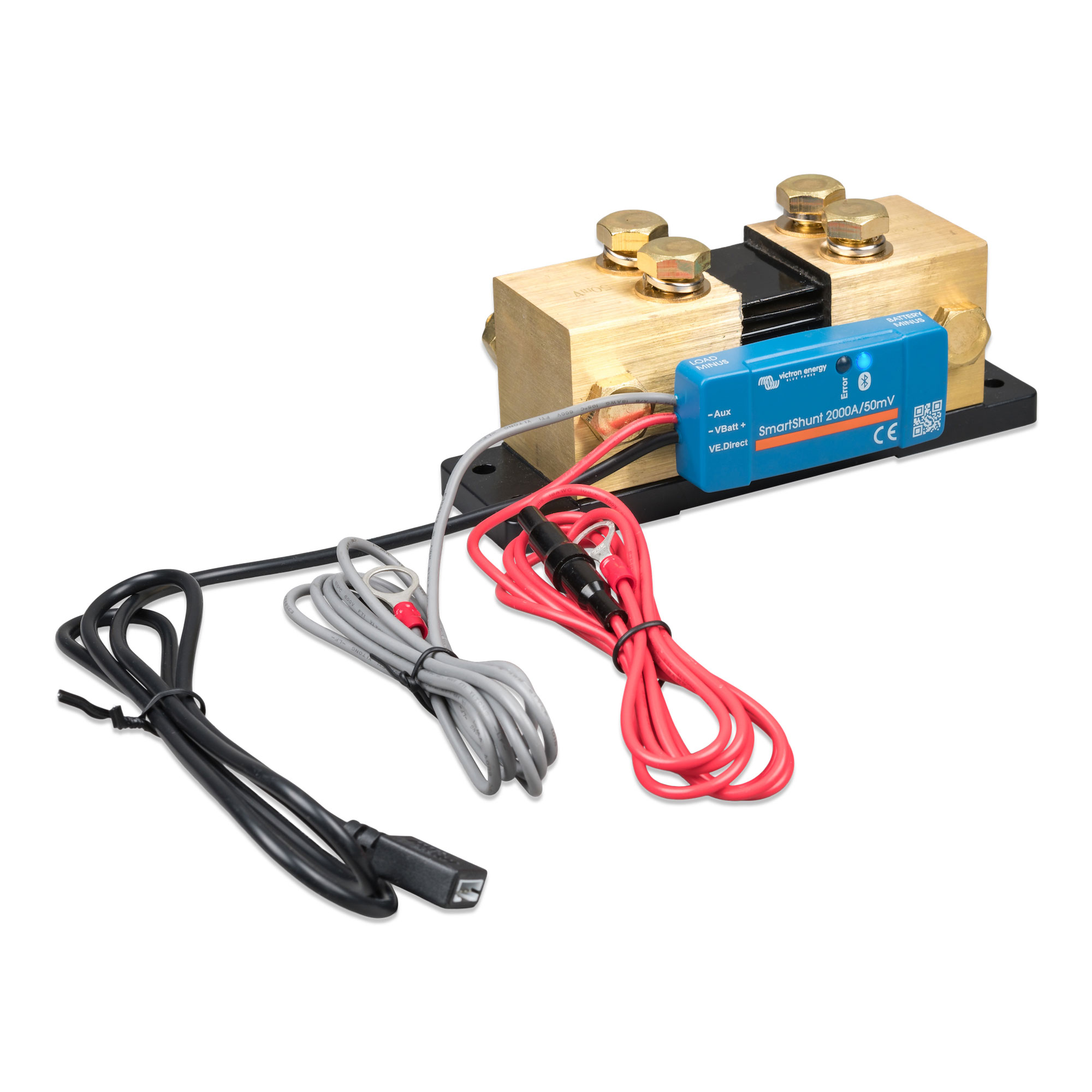

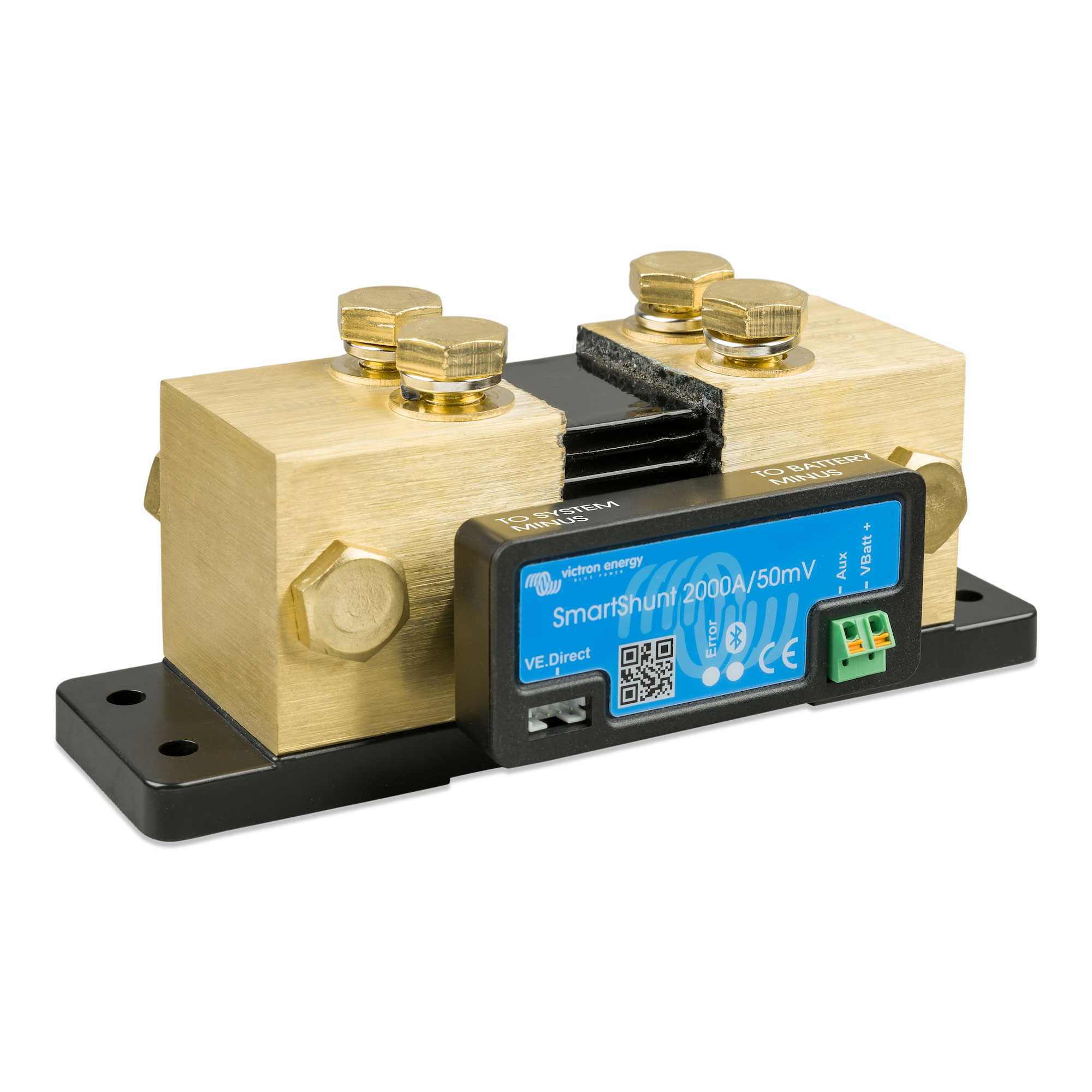

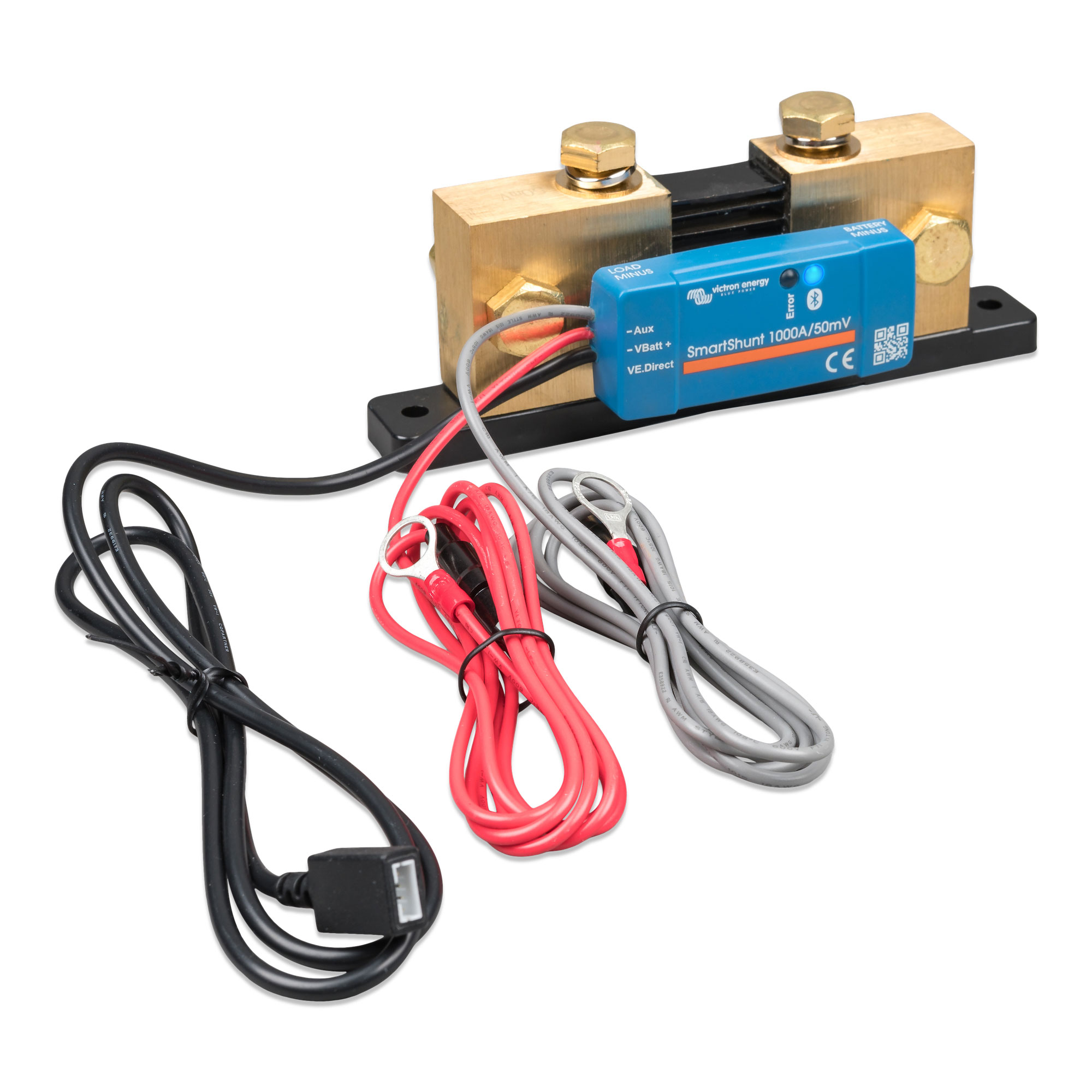

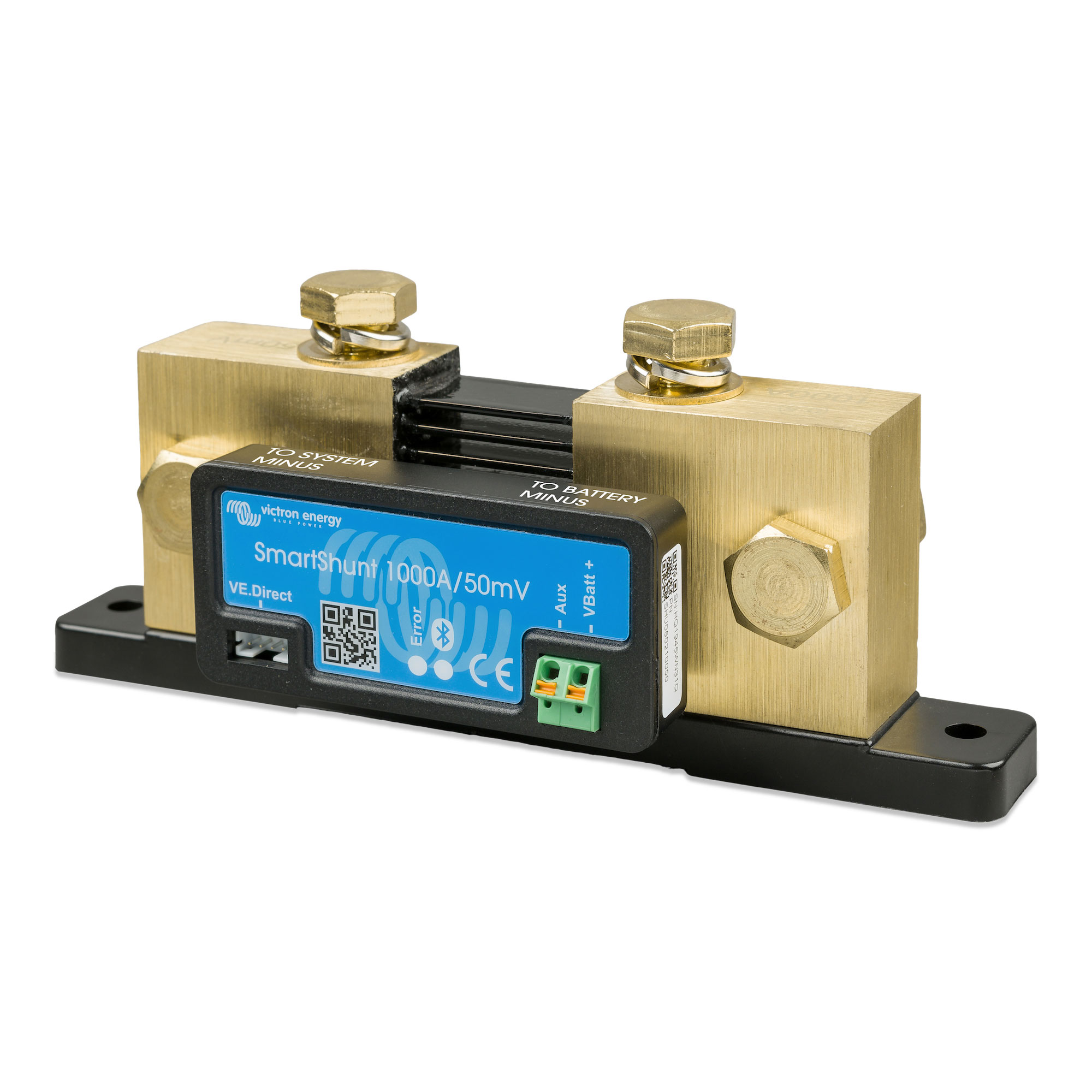

    IP21: 500A, 1000A, 2000A – IP65: 300A, 500A, 1000A, 2000A

    Additional information

    Weight N/A
    Dimensions N/A
    Download Product Datasheet
