In 2023/2024, an updated version of the Cerbo GX was released, the Cerbo GX MK2. It has the same enclosure and almost the same electronics design; except for (A) two fully functional CAN bus ports, called VE.Can 1 and VE.Can 2. Instead of one VE.Can and one dedicated BMS-Can port. And on the MK2 model, VE.Can 1 is isolated. On previous models, there was no isolated canbus port. All VE.Can ports can be configured to multiple profiles, including BMS-Can. (B) the RJ-45 sockets have been rotated 180 degrees, so its easier to take the cables out. (C) All three USB ports are fully functional. Instead of two functional and one for power, to a GX Touch, only. (D) Digital inputs can do pulse counting.

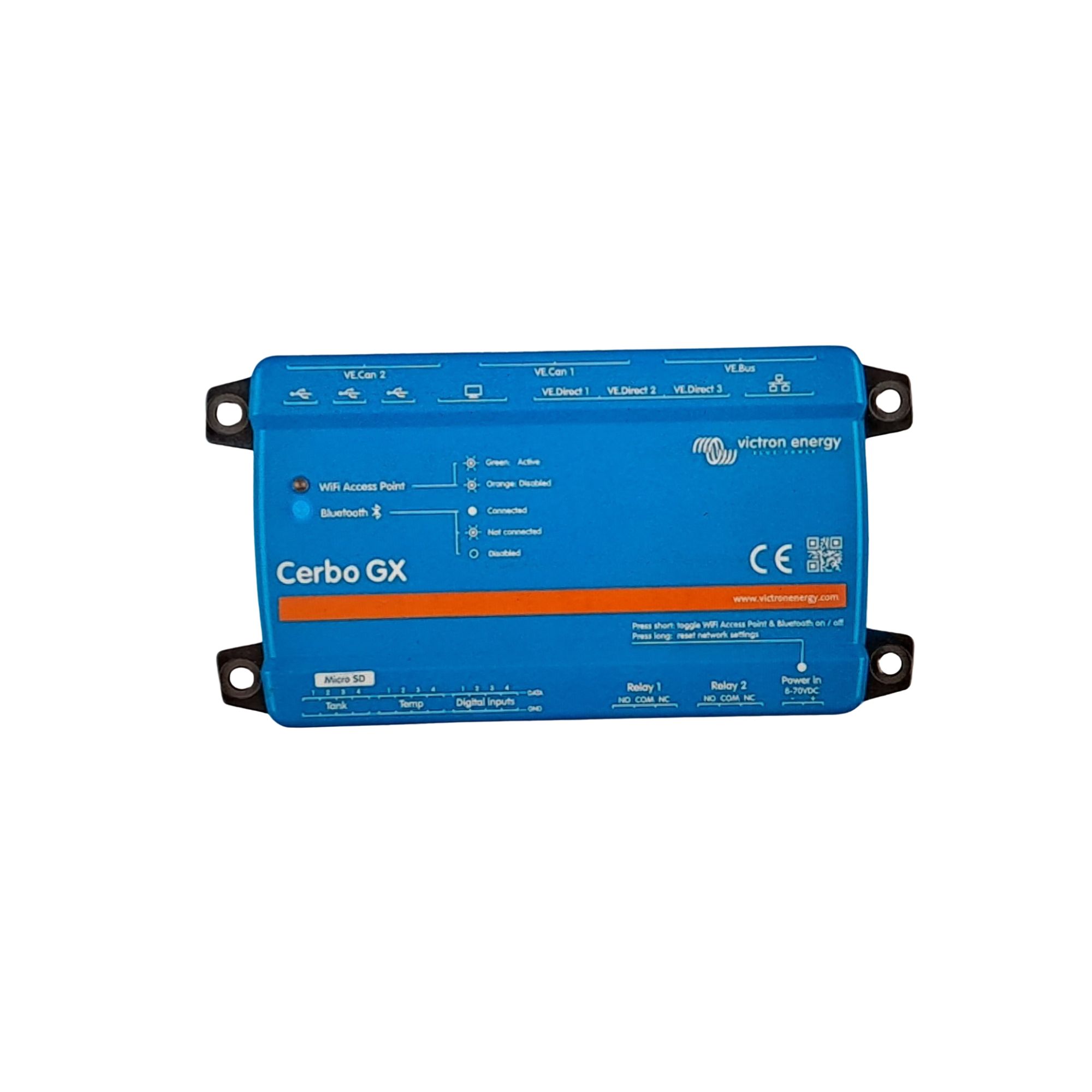

Cerbo GX MK2
$425.00 Exc GST
An improved version of the Cerbo GX. Now with two fully functional CAN bus ports, RJ-45 sockets rotated 180 degrees for easier removal of cables, three fully functional USB ports, and digital input pulse counting.
Additional information
| Weight | 0.416 kg |
|---|---|
| Dimensions | 8 × 5 × 16 cm |
